MW5 scrap steel lifting electromagnetic

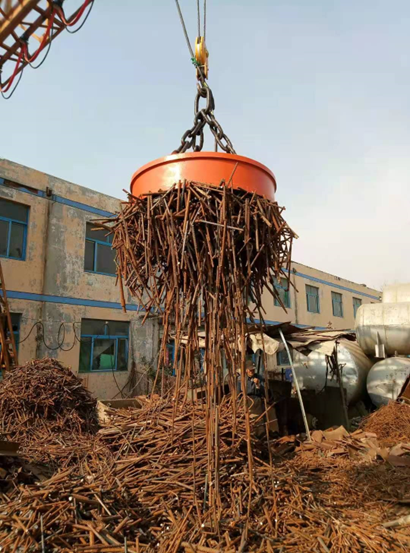

This series is used for suction and suspension casting of iron ingots, steel balls, raw iron blocks, and machining cutting; Various miscellaneous iron, recycled materials, and cutting heads in the foundry; Packaging scrap steel, etc; In the steelmaking slag treatment process, it is used to remove large iron parts in advance; Lifting iron powder and other materials at the coal washing plant. Double chamber outlet box, specially designed with extra thick outlet box protection plate, and anti twist setting for outgoing cables. The MW5 series lifting electromagnet comes in standard high-temperature and high-frequency types.

Classification :

Lifting electromagnetic

E-mail

PRODUCT DETAILS

Summary:
The lifting electromagnetic suction cup, also known as lifting electromagnet or electromagnetic crane, is mainly used for lifting magnetic materials such as steel in industries such as metallurgy, mining, machinery, and transportation. The excitation methods can be: constant voltage method, strong magnetic method, and overexcitation method.
1. Adopt other magnetic circuit designs with a high air gap magnetic density. The coil is made of aluminum wire, and the coil protection plate is made of rolled high manganese steel plate with good wear resistance and strong impact resistance. Light weight, low energy consumption, large lifting capacity, and long service life.
2. Reasonable insulation structure. The insulation treatment adopts vacuum drying and vacuum sealing, which improves the electrical and mechanical properties of the coil. The heat resistance level of insulation materials can reach special level C.
3. The constant voltage control method is usually used. If the strong excitation magnetic control method is used instead, the lifting capacity can be further improved.
4. Simple structure, safe and reliable, suitable for various types of lifting equipment.

Main technical parameters (for use at room temperature, with a continuous power on rate of TD-60%)

model				MW5-70L/1	MW5-80L/1	MW5-90L/1	MW5-110L/1	MW5-130L/1	MW5-150L/1	MW5-165L/1	MW5-180L/1	MW5-210L/1	MW5-240L/1	额定电压

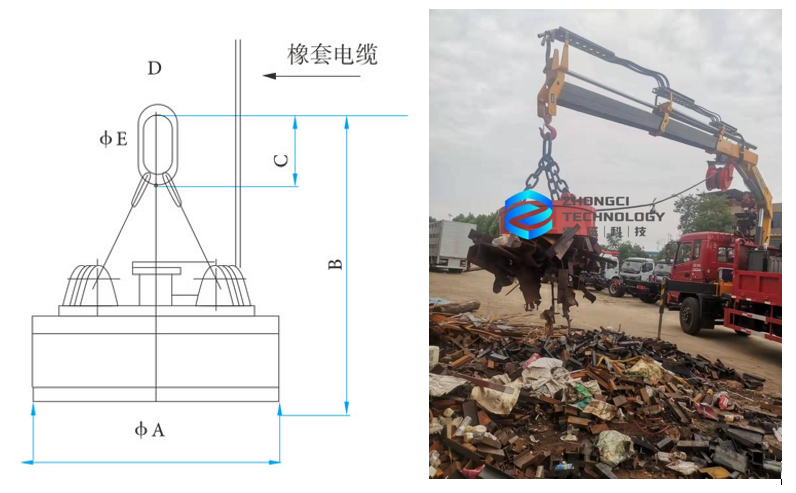

External dimensions		A	mm	700	800	900	1100	1300	1500	1650	1800	2100	2400
		B		795	780	1085	1075	1210	1215	1590	1470	1830	2000
		C		140	140	175	175	220	220	370	310	350	390
		D		90	90	125	125	175	175	230	210	250	280
		E		28	28	38	38	50	50	75	60	80	90
weight			Kg	480	630	860	1151	1620	2250	2645	3500	4600	7800
Power and lifting capacity in cold/hot state	Constant voltage control method	Current (cold state)	A	12.7	17.7	26.8	39.1	60.9	81.4	86	105.9	139.5	171
		Power consumption (cold state)	KW	2.8	3.9	5.9	8.6	13.4	17.9	18.9	23.3	30.7	37.7	DC-220V
		steel ball		2500	3000	4500	6500	8500	11000	12500	14500	21000	-
		Cast iron ingot		380/200	480/250	600/400	1000/800	1400/1100	1900/1500	2300/2800	2750/2100	3500/2800	4600/3800
		Cutting chips		380/200	480/250	600/400	1000/800	1400/1100	1900/1500	2300/2800	2750/2100	3500/2800	4600/3800
		No.1 scrap steel		120/100	150/130	250/200	450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250
		No.2 scrap steel		-	-	-	150/100	250/200	400/300	500/400	600/450	900/700	1300/1000
		Cast iron chip steel		120/100	150/130	250/200	450/400	700/600	1100/900	1300/1100	1600/1350	2200/1850	2850/2250
