MW84 steel plate lifting electromagnetic iron

This series of products is designed specifically for lifting medium and thick steel plates. The magnetic circuit design is unique and suitable for medium and thick plate factories, shipyards, and machinery manufacturing factories. Users can choose from single series (300 type), sheet number series (350 type), and multi sheet number series (400 type) according to their own requirements. The few sheet number series and multi sheet number series can be controlled by adjusting the magnetic field, which can ensure the lifting of one or more steel plates and the unloading of a single sheet. Due to the easy bending deformation of long steel plates during transportation, it is advisable to use multiple electromagnets in combination.

Classification :

Lifting electromagnetic

E-mail

PRODUCT DETAILS

Product features:
This series of products is designed specifically for lifting medium and thick steel plates. The magnetic circuit design is unique and suitable for medium and thick plate factories, shipyards, and machinery manufacturing factories. Users can choose from single sheet series (300 type), few sheet series (350 type), and multiple sheet series (400 type) according to their own requirements. The few sheet series and multiple sheet series can be controlled by adjusting the magnetic field, which can ensure the lifting of one or more steel plates and the unloading of a single sheet. Due to the easy bending deformation of long steel plates during transportation, it is advisable to use multiple electromagnets in combination. For long, medium and thick plates (6mm-32mm), the distance between electromagnets should be set at 3-4m, and the length of the protruding parts at both ends can be less than or equal to half of the distance. During operation, the bending deformation of the steel plate will affect safe handling. When selecting, attention should be paid to the corresponding parameters of the length of the electromagnet and the maximum handling width corresponding to the thickness of the steel plate, which should not be exceeded, especially in the case of lifting multiple steel plates

Main technical parameters:

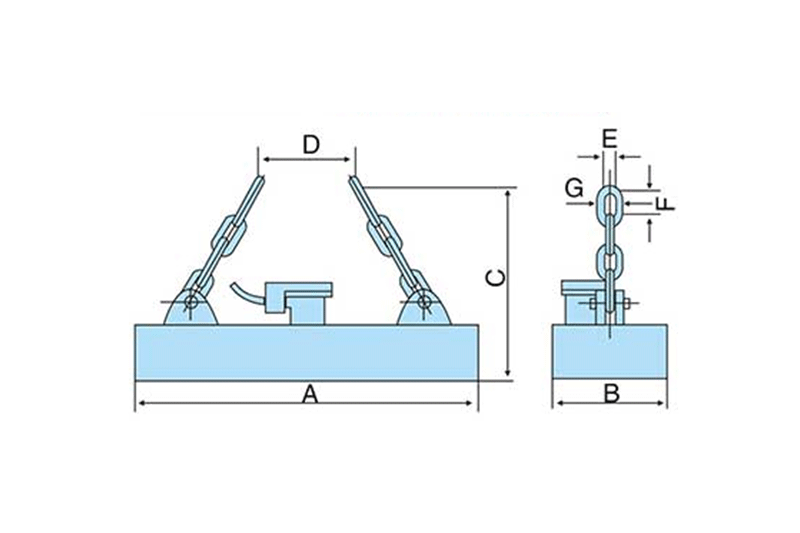

Model		Dimensions (mm)							weight（kg）	power（kw）	Maximum handling width corresponding to the thickness of the returned board（mm）
		A	B	C	D	E	F	G
		A	B	C	D	E	F	G			6	8	10	12	16
Micro transportation for single steel plates	MW84-9030T	900	300	540	300	90	140	28	210	0.75	2300	2700	3000	3230	3600
	MW84-12030T	1200	300	705	400	90	140	28	260	1	2600	7000	3300	3500	3900
	MW84-15030T	1500	300	840	500	90	140	28	340	1.15	2900	3300	3600	3800	4200
	MW84-18030T	1800	200	840	700	80	140	28	410	1.25	3200	3600	3900	4100	4500
	MW84-21030T	2100	300	840	800	90	140	28	480	1.77	3500	3900	4200	4400	4800
	MW84-24030T	2400	300	840	900	90	140	28	560	2	3800	4200	4500	4700	5100
Used for transporting fewer steel plates	MW84-10535T	1050	350	920	400	110	155	32	370	0.9	2650	3150	3350	3550	4050
	MW84-14035T	1400	350	940	500	110	155	32	490	1.2	3000	3500	3850	4200	4550
	MW84-17535T	1750	350	940	700	110	155	32	610	1.5	3350	3700	4050	4400	4750
	MW84-21035T	2100	350	960	800	110	155	32	730	1.8	3700	3900	4250	4600	4950
	MW84-24535L	2450	350	980	900	110	155	32	850	2.1	4050	4400	4750	5100	5450
	MW84-28035L	2800	400	1200	1000	110	200	40	972	2.4	4450	4850	5230	5610	6000
	MW84-31535L	2800	400	1200	1100	110	200	40	1100	2.7	4895	5335	5753	6170	6600
Used for transporting multiple steel plates	MW84-12040L	1200	400	1020	400	110	180	32	540	3.0	3000	3500	3700	4000	4500
	MW84-16040L	1600	400	1100	700	110	180	32	718	3.2	3400	3900	4100	4400	4900
	MW84-20040L	2000	400	1200	800	110	180	32	897	5.0	3800	4300	4500	4800	5300
	MW84-24040L	2400	400	1200	900	110	180	32	1080	6.0	4200	4700	4900	5200	5700
	MW84-28040L/1	2800	420	1050	1000	110	200	40	1260	7	4620	5170	5390	5720	6270
	MW84-32040L/1	3200	420	1050	1100	110	200	40	1440	8	5082	5687	5930	6290	6900
Used for transporting high-temperature steel plates	MW84-13042L/G	1260	420	1040	500	110	180	32	650	2.4	3060	3560	3760	4060	4560
	MW84-17042L/G	1680	420	1045	700	110	180	32	850	3.7	3480	3980	4780	4480	4980
	MW84-21042L/G	2100	420	1010	800	110	180	32	1050	4.0	3900	4400	4600	4900	5400
	MW84-25042L/G	2520	420	1050	900	110	180	32	1250	4.8	4320	4820	5020	5320	5820
	MW84-10050L/G	1000	500	950	500	110	155	32	750	2.8	3200	3600	3900	4200	4800
	MW84-15050L/G	1500	500	950	650	110	155	32	1120	4.2	3400	3700	4000	4400	5000
	MW84-20050L/G	2000	500	1000	750	110	200	40	1500	5.6	3900	4400	4700	4900	5200
	MW84-25050L/G	2500	500	1200	900	110	200	40	1754	7.04	4300	4700	5000	5300	5600

Example of reliable handling of steel plates

Model		The corresponding suction and lifting tension for steel plates with a thickness of less than 1.5M in width							The corresponding suction and lifting tension of steel plates with a thickness of less than 2.5M in width							The number of suction and lifting tension corresponding to steel plates with a thickness below 4.0M
Model		6	8	10	12	16	20	32	6	8	10	12	16	20	32	6	8	10	12	16	20	32
Minority series	MW84-10535T	3	3	3	3	2	2	1	1	1	1	1	1	1	1	一	一	一	一	1	1	1
	MW84-14535T	4	4	3	3	2	2	1	3	2	2	2	2	1	1	一	一	一	一	1	1	1
	MW84-17535T	4	4	3	3	2	2	1	4	3	3	3	2	2	1	一	一	1	1	1	1	1
	MW84-21035T	4	4	4	4	2	2	1	4	3	3	3	2	2	1	一	2	2	2	1	1	1
	MW84-24035L	4	4	4	4	2	2	1	4	4	4	3	2	2	1	3	3	3	3	2	1	1
Most of the series	MW84-12040L	6	5	4	4	2	3	1	3	3	3	2	2	2	1	一	一	一	一	1	1	1
	MW84-16040L	7	5	5	5	3	3	1	6	4	4	4	3	2	1	一	一	2	2	2	2	1
	MW84-20040L	7	5	5	5	3	3	1	6	4	4	4	3	3	1	一	3	3	3	2	2	1
	MW84-24040L	7	5	5	5	3	3	1	7	5	5	4	3	3	1	5	4	4	4	2	2	1

Note: When the suction and suspension tension is 220V and in the hot state, the suction and suspension state of each electromagnet is 3M in length
