This series of products is designed specifically for lifting multiple steel plates. It can meet the lifting requirements for a maximum of 12 6mm steel plates, 6-8 8-10mm steel plates, 4-5 12-16mm steel plates, and 2 20-25mm steel plates. We can lift more steel plates according to customer needs. It can also be implemented according to customer requirements; The working condition requirement of lifting multiple steel plates at once and placing them individually in sequence.

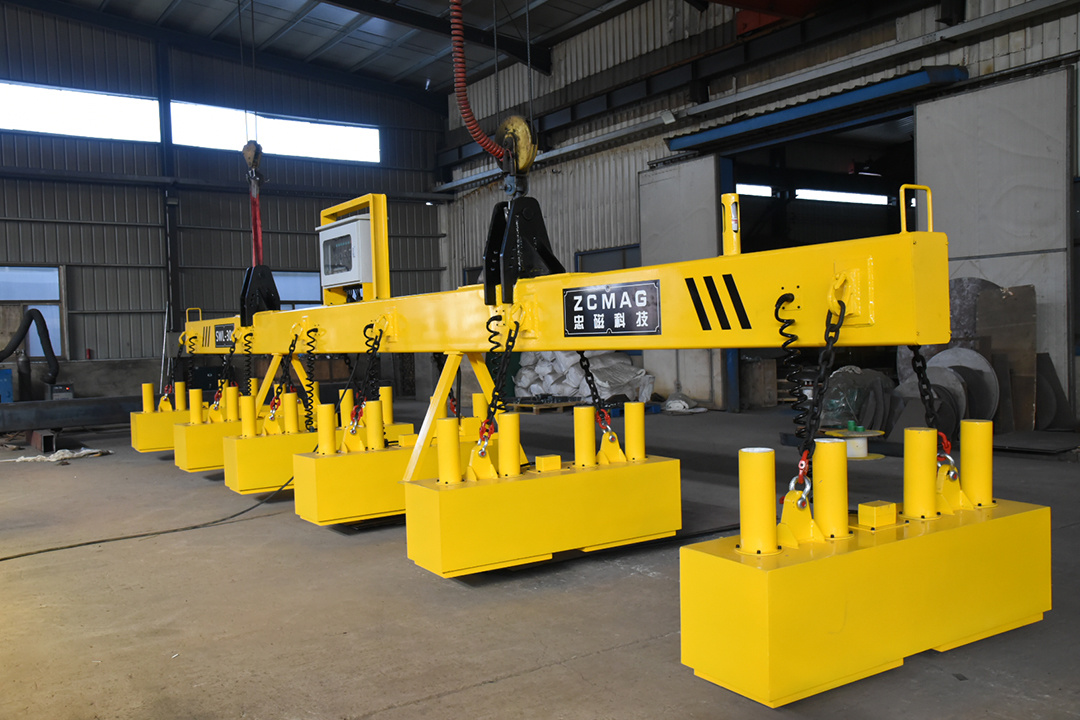

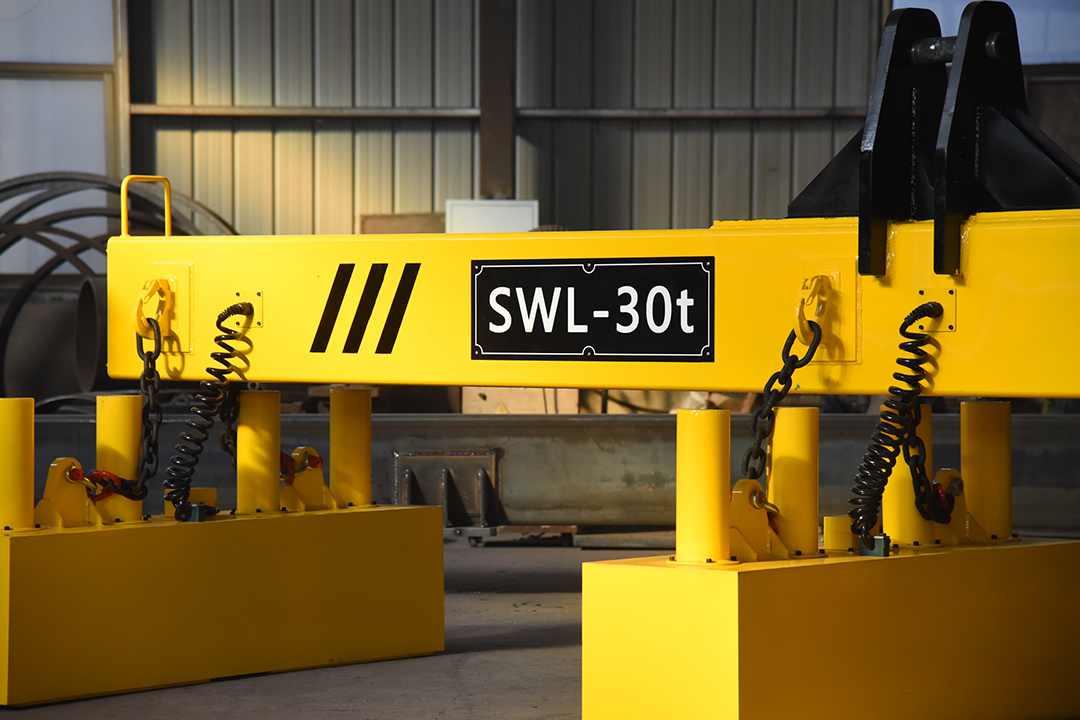

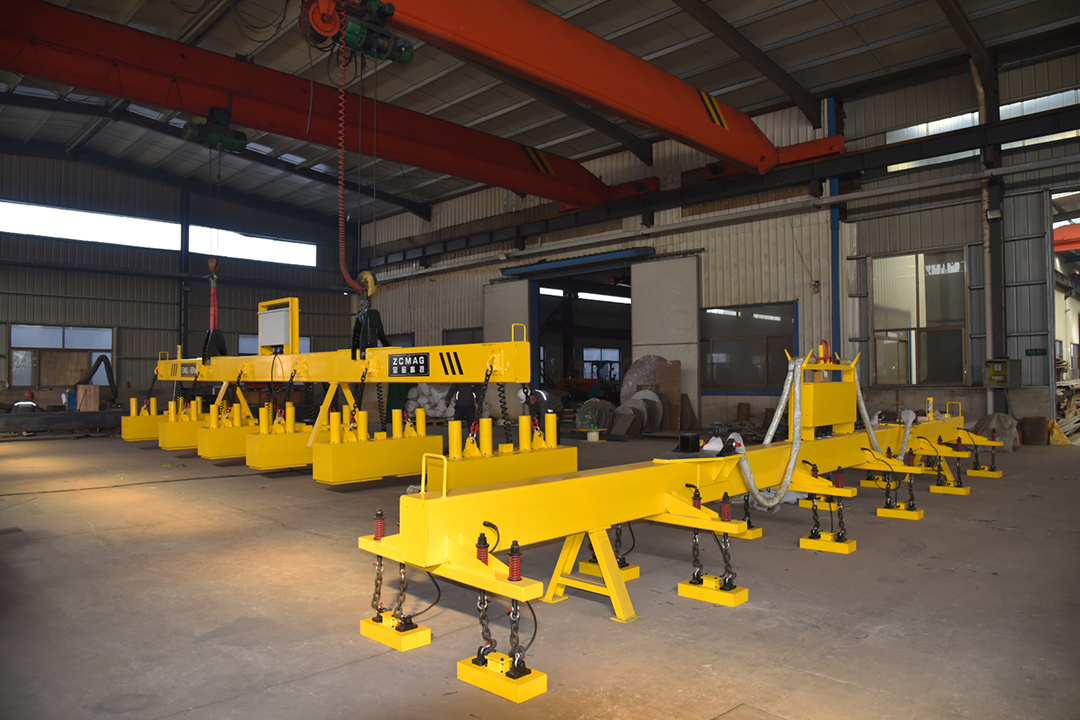

This series of products is designed specifically for lifting medium thick plates (single steel plates with a thickness>4mm). Multiple lifting electric permanent magnets are used for joint lifting, and different types of lifting permanent magnets can be selected according to the specifications range of the steel plates (length, width, thickness) and the lifting capacity of the crane. They can be grouped and controlled to accommodate steel plates of different lengths for lifting.

This series of products is designed specifically for steel plate laser, plasma, and flame cutting loading and unloading. The electric permanent magnet can be customized with adjustable magnetic penetration depth according to the length, width, thickness, and other conditions of the steel plate. Through the reasonable area layout of the electric permanent magnet and the intelligent recognition of the control system, zone control is carried out to achieve the overall or partial inspection of the workpiece after cutting and the loading and unloading of the entire steel plate before cutting. Reduce manual labor - Minimize manual handling of boards and cutting components to improve operator safety and efficiency. Improve the utilization rate of the cutting table - achieve faster loading and unloading of the cutting table, and maximize the normal operation time of the machine. Improve the quality of cutting components - reduce the risk of component damage during processing, ensuring high quality of finished products. Enhanced operator safety - Operators do not need to manually handle thick plates and sharp cutting parts, thereby reducing the risk of injury.

This series of products is designed specifically for lifting medium thick plates (single steel plates with a thickness>4mm) of different lengths and similar weights. The lifting device can extend and retract the outermost side of the lifting beam. According to the specification range of steel plates (length, width, thickness) and the lifting capacity of the crane, different specifications of lifting electric permanent magnets are selected, and multiple combination modes are used for joint lifting (which can be controlled in groups). Compared to ZCPM01, this series of products is more suitable for working conditions with large variations in steel plate length, which can reduce the number of electric permanent magnets and save storage space.

It can achieve vertical and horizontal lifting of steel strip coils. Will not scratch the surface of the steel strip coil.

This series of products is specifically designed for lifting and transporting ultra thick steel billets (including slab, square billet, rectangular billet, irregular billet, etc.). Depending on the specifications and quantity, single or multiple units can be used in combination for lifting. Active magnetic blocks can also be selected according to the height difference of the object being lifted to achieve safe lifting.

Automated electric permanent magnets. It has the advantages of small size, strong clamping force, simple operation, safety and reliability. When combined with automated equipment such as robot welding and positioning machines, it can solve problems such as complex fixture structure, space occupation, inaccurate layout and positioning, and workpiece falling and damage. It can also save time and labor costs, and can be customized according to customers' actual working conditions.

Electric permanent magnet suction cups, as specialized fixtures for iron mechanical processing (including turning, milling, planing, drilling, etc.), are widely used in the mechanical manufacturing industry, suitable for both ordinary machine tool processing and high-precision CNC equipment applications such as machining centers.

This series is used for suction and suspension casting of iron ingots, steel balls, raw iron blocks, and machining cutting; Various miscellaneous iron, recycled materials, and cutting heads in the foundry; Packaging scrap steel, etc; In the steelmaking slag treatment process, it is used to remove large iron parts in advance; Lifting iron powder and other materials at the coal washing plant. Double chamber outlet box, specially designed with extra thick outlet box protection plate, and anti twist setting for outgoing cables. The MW5 series lifting electromagnet comes in standard high-temperature and high-frequency types.

The purpose of the MW61 series lifting electromagnet is the same as that of the MW5 series, but its appearance is an elliptical shape specially designed to adapt to the shape of the carriage, suitable for efficient loading and unloading of scrap steel in container shaped carriages and adding scrap steel to rectangular material troughs. Due to the varying sizes of hoppers in different steel companies, they can be customized according to specific requirements.
